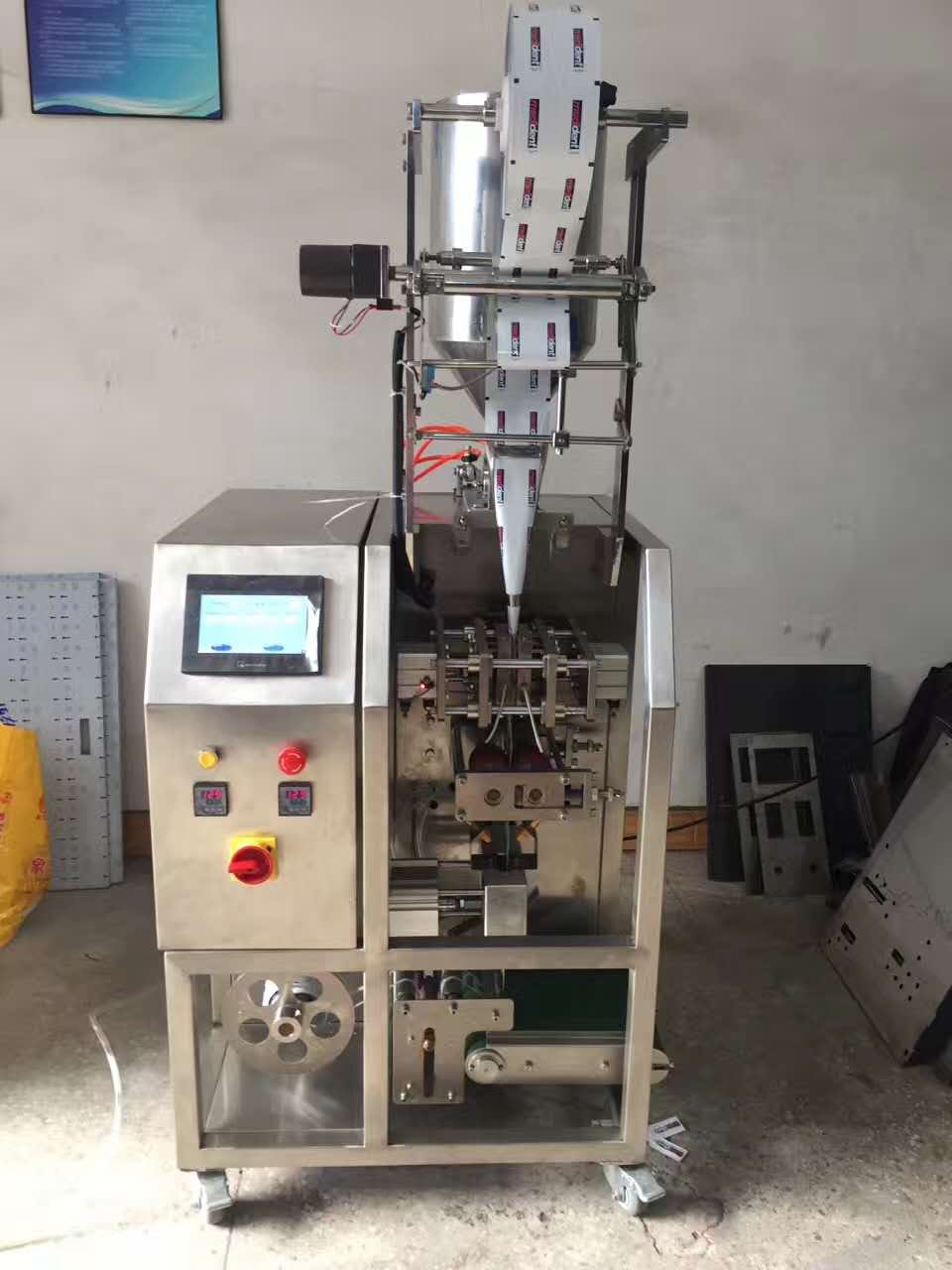

The Irregular Shaped Bag Packing Machine For Liquid is suitable for liquid water, shampoo, fruit juice, tomato paste, beverages, cosmetics, etc.
- Model: RL-220; Film Width: 220mm; Max Bag Size: 90mm(W)*160mm(L); Speed: 20-60bags/min;
- It can complete automatically feed, measure, bag form, fill, seal, cut, print date code, etc.
- 304 stainless steel machine cabinet, PLC computer control system with touch screen, display screen is simple and direct viewing in operation, daily production output and self-diagnostic machine error will be viewed directly from the screen.
- It adopts sealing mould and cutting mould to keep irregular shaped sachet.
- Driven type: pneumatic, it make the operation easy than mechanical driven type, and the packing samples more beautiful than common.
- Attractive appearance. Stable performance.
- The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts.
- Intelligent temperature control by temperature controller to make heat balance better.
- Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
- With safe plastic box on rotating blade to avoid hurting operators hands.
- High sensitive fiber optic photo sensor can automatically trace color mark accurately.
